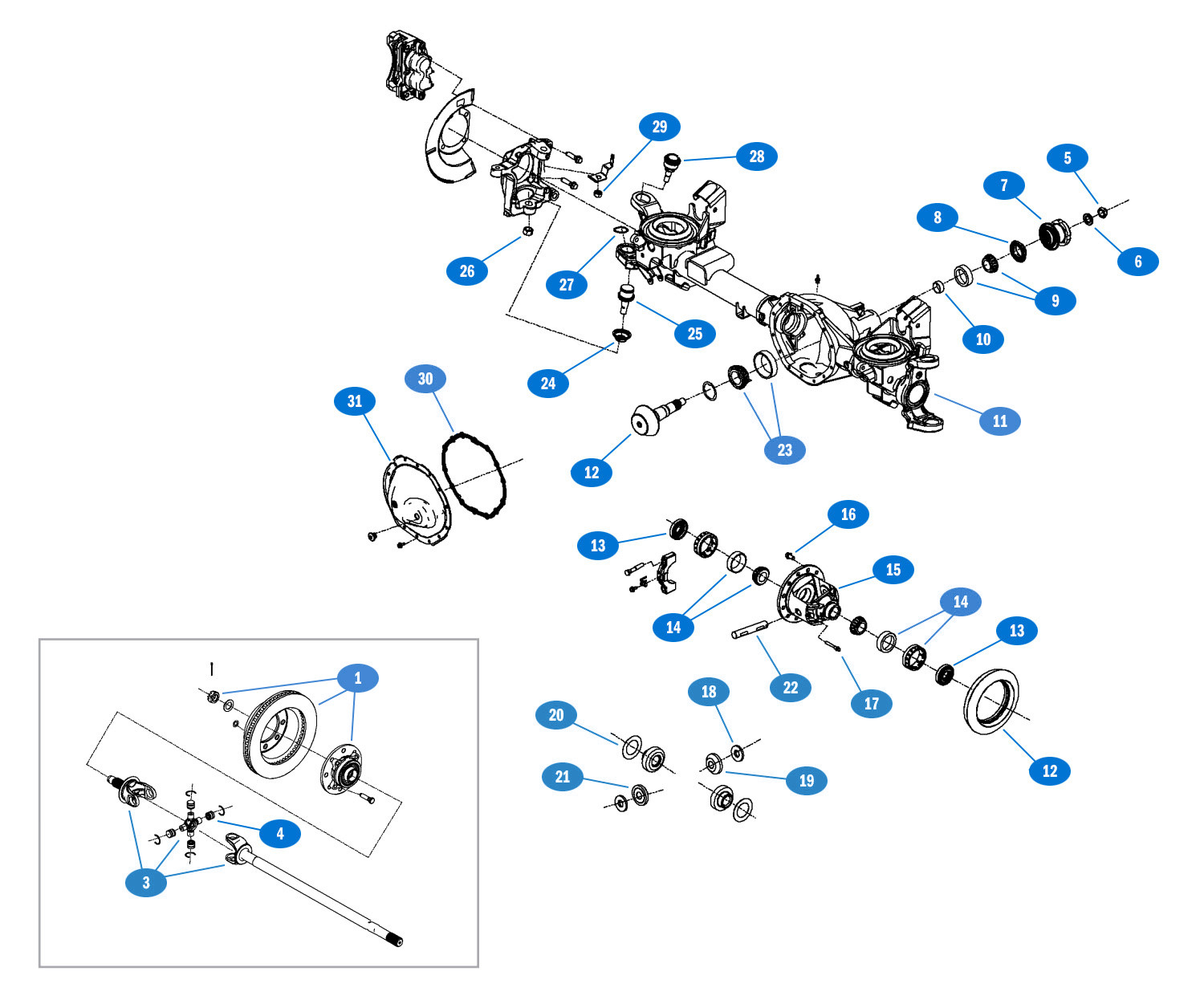

9.25 FrontAxle 14Bolt
ILL #CATALOG PART #AAM PART #OEM PART #ACTIVE PART #DESCRIPTIONNOTES / KITS / ASSEMBLIESQTY BY AXLEUSAGEMODEL YEAR
1Hub & Rotor Asm (Single Wheel)Not Offered
34002073505086666AB40020735KU-Joint & Axle Shaft Asm - RH Long 1485Sold as kit 74020735K includes washer and nut12500, 3500 (DH/DR/DS/DJ)2003-2008
34002073405086667AB40020734KU-Joint & Axle Shaft Asm - LH Short 1485Sold as kit 74020734K includes washer and nut12500, 3500 (DH/DR/DS/DJ)2003-2008
34005246068055221AA40052460KU-Joint & Axle Shaft Asm - LH Long 1485Sold as kit 40052460K includes washer and nut12500, 3500 (DH/DR/DS/DJ)2009-2013
34005246168055220AAU-Joint & Axle Shaft Asm - RH Long 1485Sold as kit 40052461K includes washer and nut12500, 3500 (DH/DR/DS/DJ)2009-2013
34007277368065426AB40072773U-Joint & Axle Shaft Asm - RH 1550 SeriesSold as Individual Part12500, 3500 (DH/DR/DS/DJ)2009-2013
34007277468065427AB40072774U-Joint & Axle Shaft Asm - LH 1550 SeriesSold as Individual Part12500, 3500 (DH/DR/DS/DJ)2009-2013
34002277140022771Axle Shaft Lh Inner 1485 SeriesSold as Individual Part (40022771)12500, 3500 (DH/DR/DS/DJ)2003-2008
34002277240022772Axle Shaft Rh Inner 1485 SeriesSold as Individual Part (40022772)12500, 3500 (DH/DR/DS/DJ)2003-2008
340060431Axle Shaft Lh Inner 1550 SeriesNot Offered12500, 3500 (DH/DR/DS/DJ)2010-2013
34006043940060439Axle Shaft Rh Inner 1550 SeriesSold as Individual Part (40060439)12500, 3500 (DH/DR/DS/DJ)2010-2013
340060443Lh / Rh Outer Axle Shaft 1550 SeriesSold as Individual Part (40060443)12500, 3500 (DH/DR/DS/DJ)2010-2013
474081555A74081555AU-Joint 1555Sold as kit (74081555A)22500, 3500 (DH/DR/DS/DJ)2010-2024
5978376297837629783762Prevailing Torque Pinion NutSold as Individual Part (09783762) or kit 74067005, 7402000912500, 3500 (DH/DR/DS/DJ)2003-2013
6517900517900517900Pinion Nut WasherSold as Individual Part (00517900) or kit 74067005, 7402000912500, 3500 (DH/DR/DS/DJ)2003-2013
74004786005086696AC40047860Pinion Yoke (Piloted)Sold as Individual Part (40047860)12500, 3500 (DH/DR/DS/DJ)2003-2013
84001714005086697AB40017140Pinion SealSold as Individual Part (14017140) or kit 7402000912500, 3500 (DH/DR/DS/DJ)2003-2013
99417782941778274067022Pinion Tail Bearing RollerSold as kit 7406702212500, 3500 (DH/DR/DS/DJ)2003-2013
99417783941778374067022Pinion Tail Bearing RaceSold as kit 7406702212500, 3500 (DH/DR/DS/DJ)2003-2013
10140126911401269114012691Collapsible SpacerSold as Individual Part (14012691) or kit 74067005, 7402000912500, 3500 (DH/DR/DS/DJ)2003-2013
11HousingNot Offered2500, 3500 (DH/DR/DS/DJ)
124004528868031661AA40045288Ring & Pinion Gear Set (3.42 Ratio; 2 Cut)Sold as Individual Part (40045288)12500, 3500 (DH/DR/DS/DJ)2008-2013
124003654668002475AA40036546Ring & Pinion Gear Set (3.73 Ratio; 2 Cut)Sold as Individual Part (40036546)12500, 3500 (DH/DR/DS/DJ)2007-2013
124004178268002471AA40041782Ring & Pinion Gear Set (4.10 Ratio; 2 Cut)Sold as Individual Part (40041782)12500, 3500 (DH/DR/DS/DJ)2007-2013
134001196505086686AAOutput (Axle Shaft) SealSold as Individual Part (40011965) or kit 7405001622500, 3500 (DH/DR/DS/DJ)2003-2013
134020174205086686AB40201742Output (Axle Shaft) SealSold as Individual Part (40201742) or kit 7405001622500, 3500 (DH/DR/DS/DJ)2003-2013
141150512311505123Differential Bearing AssemblyNot Offered2500, 3500 (DH/DR/DS/DJ)
154003146068002461AA40031460Differential Open Case Asm (Spherical Back Tracrite® Open; With Internals)Sold as Individual Part (40031460)12500, 3500 (DH/DR/DS/DJ)2007-2013
154003504640035046Differential Open Case Assembly (With Internals)Sold as Individual Part (40035046)12500, 3500 (DH/DR/DS/DJ)2003-2006
164003130640031306Ring Gear Bolt W/ D62 AdhesiveSold as Individual Part (40031306)122500, 3500 (DH/DR/DS/DJ)2003-2013
171401270214012702Pinion Shaft Lock ScrewNot Offered12500, 3500 (DH/DR/DS/DJ)2003-2013
1840011263Pinion Thrust Flat WasherNot Offered22500, 3500 (DH/DR/DS/DJ)2003-2006
1940011261Pinion Flat Back GearNot Offered22500, 3500 (DH/DR/DS/DJ)2003-2006
201401269714012697Side Thrust WasherNot Offered22500, 3500 (DH/DR/DS/DJ)2003-2013
2140035216Side GearNot Offered22500, 3500 (DH/DR/DS/DJ)2003-2006
221401270014012700Pinion ShaftNot Offered12500, 3500 (DH/DR/DS/DJ)2003-2013
2345710805086688AAPinion Head Bearing AssemblyNot Offered12500, 3500 (DH/DR/DS/DJ)2003-2013
244001063540010635Lower Ball Joint SealSold as Individual Part (40010635) or kit 7410000122500, 3500 (DH/DR/DS/DJ)2003-2013
2540010451Lower Ball Jointwas sold as kit 74100001, currently Not available22500, 3500 (DH/DR/DS/DJ)2003-2013
264001201340012013Lower Ball Joint NutSold as Individual Part (40012013) or kit 7410000122500, 3500 (DH/DR/DS/DJ)2003-2013
274001196940011969Retaining RingSold as Individual Part (40011969) or kit 7410000122500, 3500 (DH/DR/DS/DJ)2003-2013
284002076040020760Upper Ball JointSold as Individual Part (40020760)22500, 3500 (DH/DR/DS/DJ)2003-2013
29115168431151684311516133Upper Ball Joint NutSold as Individual Part (11516133) or kit 7410000122500, 3500 (DH/DR/DS/DJ)2003-2013
3040011815Rubber Over Metal Coverpan GasketNot Offered12500, 3500 (DH/DR/DS/DJ)2003-2013
314006394868065445AA40063948CoverpanSold as Individual Part (40063948)12500, 3500 (DH/DR/DS/DJ)2003-2013
324001459205086678AAKNUCKLE, RH (MACH)Not Offered12500, 3500 (DH/DR/DS/DJ)2003-2008
324006042068065447AA40060420KNUCKLE, RH (MACH)Sold as Individual Part12500, 3500 (DH/DR/DS/DJ)2009-2013
334001459305086679AAKNUCKLE, LH (MACH)Not Offered12500, 3500 (DH/DR/DS/DJ)2003-2008
334006042168065446AA40060421KNUCKLE, LH (MACH)Sold as Individual Part12500, 3500 (DH/DR/DS/DJ)2009-2013
Kit7406702274067022Master Bearing Kit: Differential Bearing Assembly, Pinion Head Bearing As09417782, 09417783, 14012691, 00517900, 09783762, 40017140, 40176544, 40176545, 40155342,12500, 3500 (DH/DR/DS/DJ)2014-2016
Kit7404246274042462Differential Gear Kit: Pinion Gear, Side Thrust Washer, Side Gear, Pinion40011261, 40011263, 40027464, 14012697, 14012700, 1401270212500, 3500 (DH/DR/DS/DJ)2007-2012
Kit74100001Ball Joint kit Ball Joint Kit: Lower Ball Joint, Upper Ball Joint, Ball J40010451, 40010635, 40011969, 40012013, 11516133, 40011986, 4006753212500, 3500 (DH/DR/DS/DJ)2003-2013
Kit7405001674050016Output Shaft Seal Kit: Output Seal, Bolt W/ Washer & Adhesive40011965, 4001198612500, 3500 (DH/DR/DS/DJ)2003-2012
Kit7402000974020009Pinion Kit: Pinion Seal, Collapsible Spacer, Prevailing Torque Pinion Nut40017140, 26060975, 14012691, 00517900, 0978376212500, 3500 (DH/DR/DS/DJ)2003-2012
Kit7411000174110001Wheel Joint Kit (1485): U Joint 1485, Ring, Retaining, Deflector, Axle Hu40023193, 40011848, 40011986, 40010627, 4010628, 40021280, 7408148512500, 3500 (DH/DR/DS/DJ)2003-2009
Kit7411000274110002Wheel Joint Kit (1555): U Joint 1555, Ring, Retaining, Deflector, Axle Hu40011848, 40011986, 40010627, 40010628, 40021280, 7408155512500, 3500 (DH/DR/DS/DJ)2010-2013
Kit74081555A74081555AU-Joint KitOnly for Axles 155522500, 3500 (DH/DR/DS/DJ)2010-2024
